IaaS Lift and Shift Project

(For better view please use a laptop browser)

(Click on USAGE GUIDE to learn how to use this tool)

Usage Guide

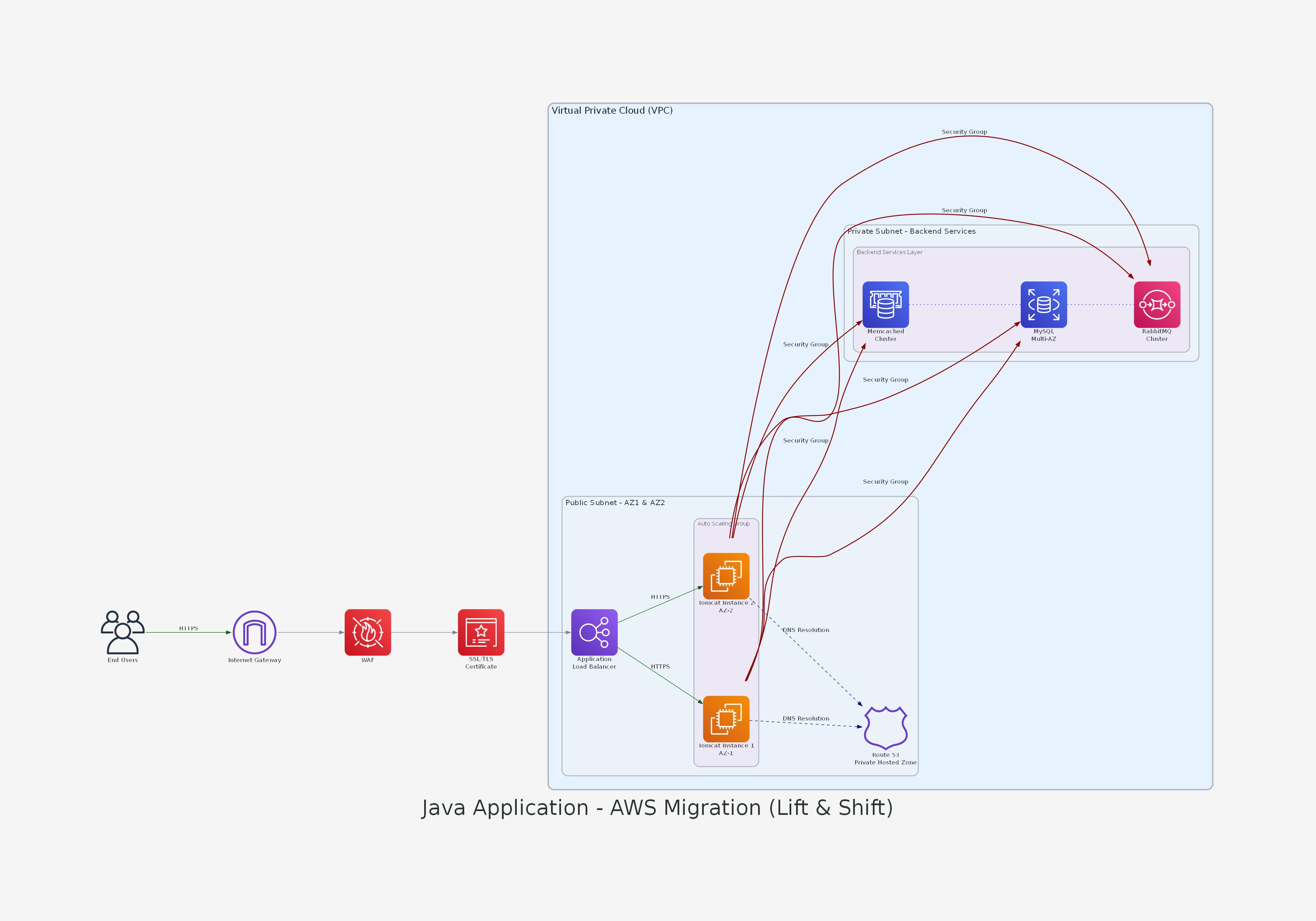

This diagram shows the AWS architecture for the Java application deployment.

  • Click and drag to pan around the diagram
  • Use mouse wheel to zoom in/out
  • Click on AWS services to see more details
  • Use the resource types panel to filter services

Architecture Overview

AWS Architecture Diagram
